流水線設備效果圖種類繁多，根據不同的分類標準，可以將其歸納為以下主要類型：

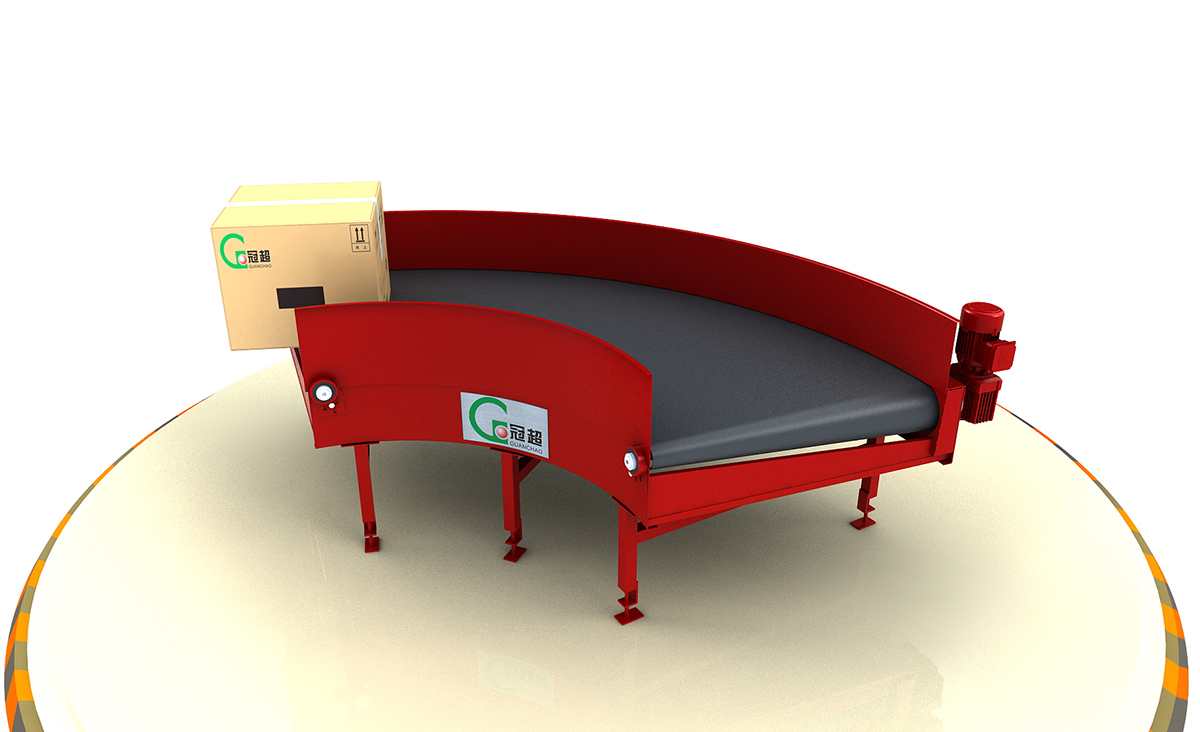

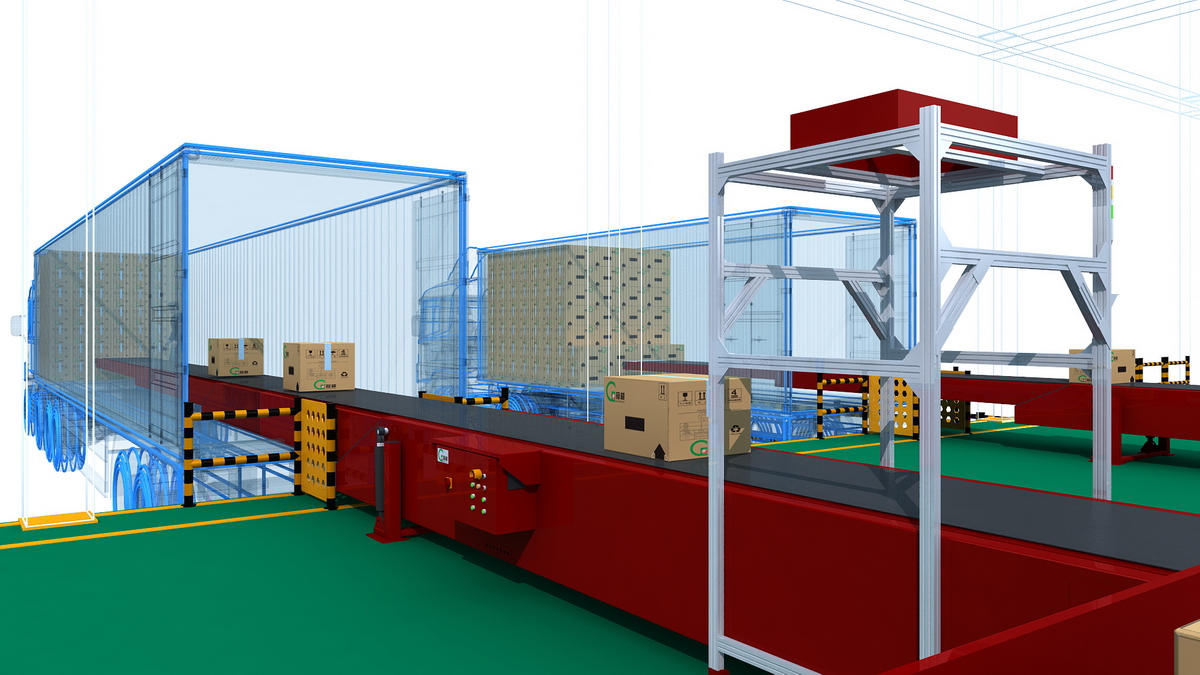

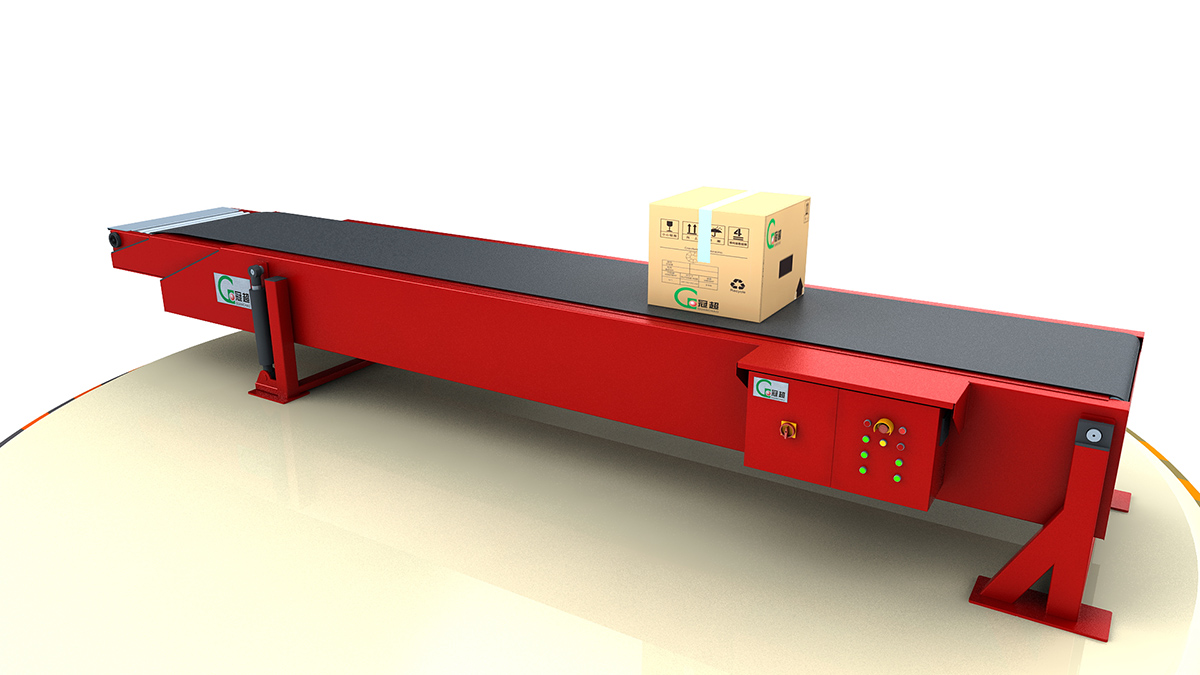

皮帶機流水線（效果圖又稱皮帶輸送機效果圖）‌：

應用于電子、五金、食品、醫藥、物流中心及輕載物品的輸送。

特點：運行平穩，噪音小，適用于輕型物料的長距離平穩輸送。

滾筒機流水線效果圖（又稱輥道輸送機效果圖）‌：

應用于紙箱、周轉箱、托盤、棧板等，適合底面是平面的物料輸送，物流中心常用。

特點：承載的產品類型廣泛，所受限制少，可配合阻擋器實現產品積放或離線檢測。

鏈板機流水線效果圖（又稱板鏈輸送機效果圖、擱板輸送機效果圖）‌：

應用于大件物品且有一定重量的產品裝配及輸送要求，柔性鏈板則用于食品醫藥卷煙行業和物流中心。

特點：可承載比較重的產品，和生產線同步運行，可以實現產品的爬坡和平穩輸送。

倍速鏈流水線效果圖（又稱倍速鏈輸送機效果圖、差速鏈輸送機效果圖）‌：

應用于大物件產品需要自由裝配，柔性要求比較高的情況下。

特點：采用倍速鏈牽引，工裝板可以自由傳送，便于集成自動化設備，實現工件的自由運動或停止。

懸掛鏈流水線效果圖（又稱懸掛鏈輸送機效果圖）‌：

應用于物料的配送、儲存、噴涂、烘干固化、利用高空間區域等情況下。

特點：以懸掛的方式完成產品的輸送，常與鏈板輸送線一起應用于汽車制造等行業。

鏈條式流水線效果圖（又稱鏈條式輸送機效果圖、棧板輸送機效果圖、托盤輸送機效果圖）‌：

適用于需要精確控制物料位置的場景。

特點：承載能力強，運行穩定。

桁架式流水線效果圖（又稱桁架輸送機效果圖）‌：

主要應用于汽車整車裝配廠。

特點：結構穩固，承載能力強，適用于大型物件的輸送。

雪橇式流水線效果圖（又稱雪橇輸送機效果圖）‌：

主要應用于汽車整車裝配廠。

特點：輸送效率高，適用于連續、大批量的生產。

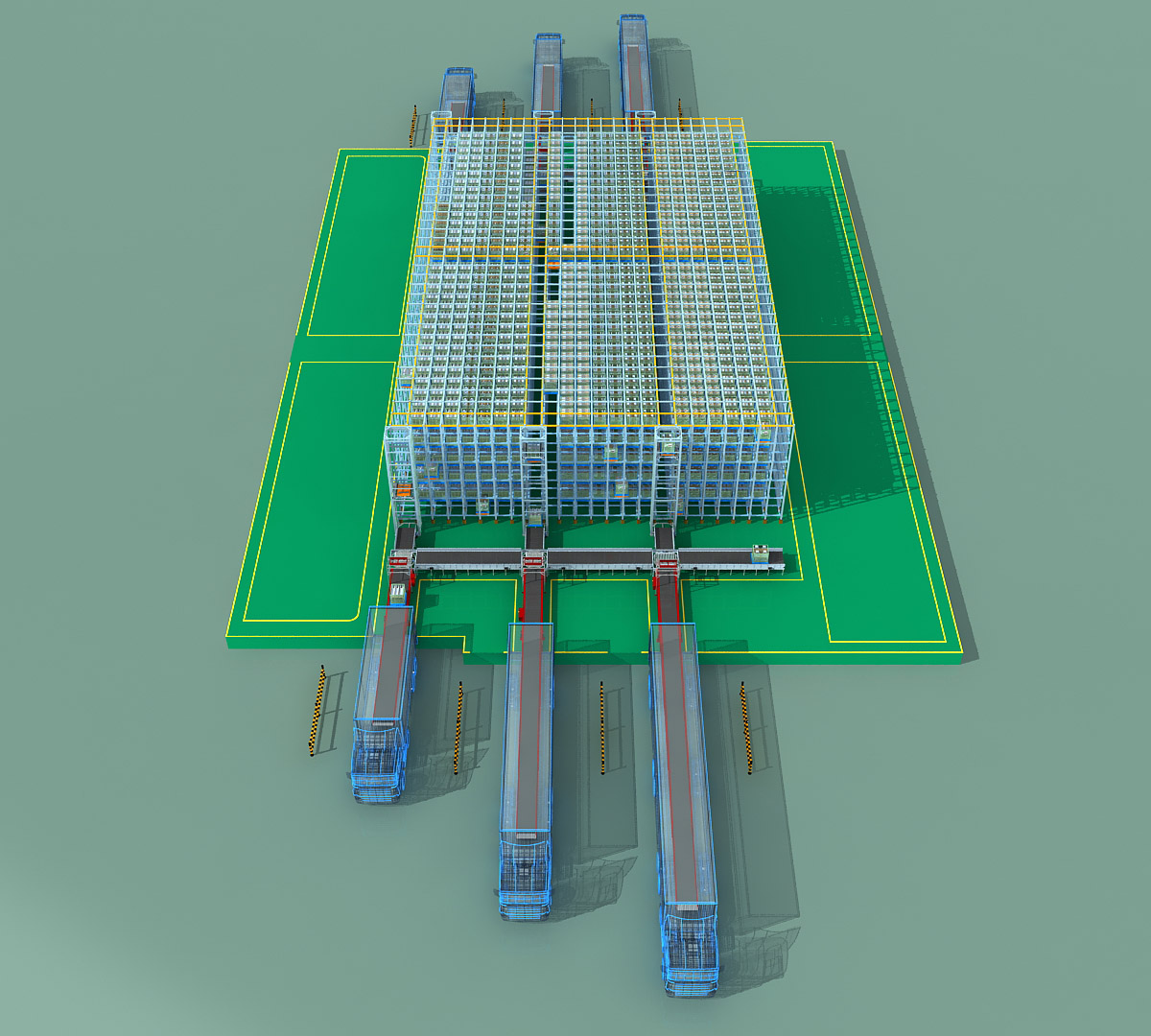

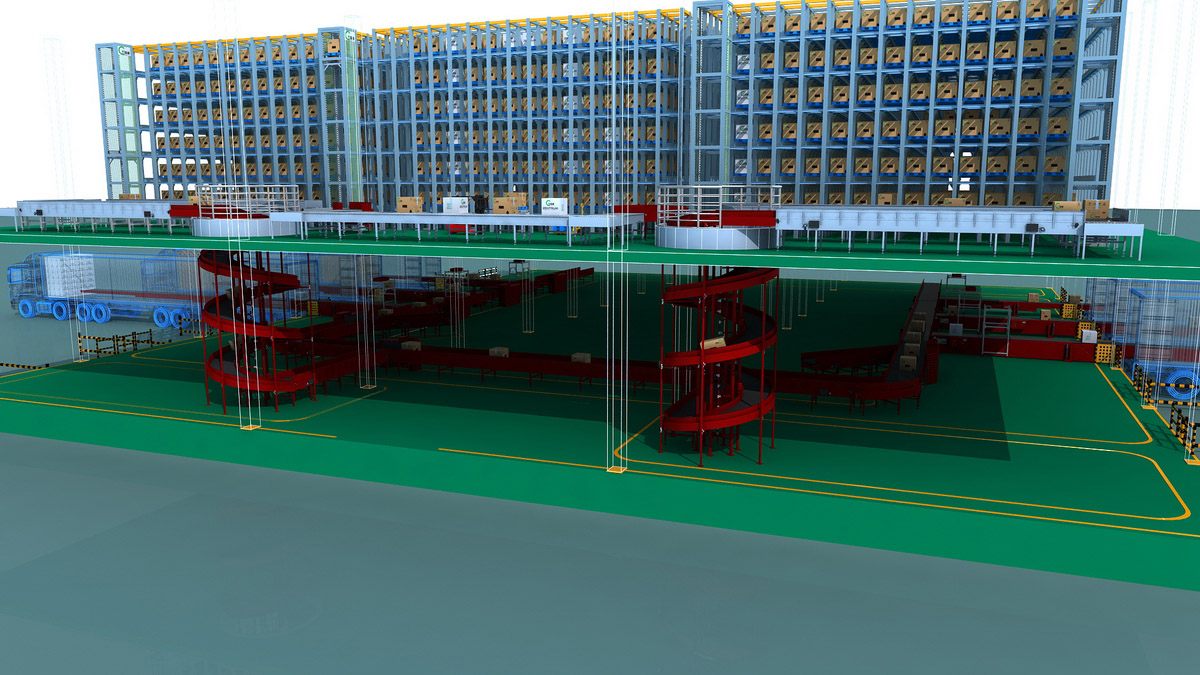

軌道式流水線效果圖（又稱環形臺車輸送機效果圖、循環式輸送機效果圖、往返式輸送機效果圖）‌：

應用于大型自動化倉儲物流分撥中心，作為快速儲存或配送周轉來應用。

特點：輸送能力強，運行平穩，適用于自動化倉儲物流系統。

來源：專業的效果圖公司，追求卓越18年的三維圖制作經驗，承接廠房/車間/倉儲/別墅/民宿/農莊/加油站/辦公樓/會所/景觀/園林/古建/祠堂/工程/亮化/道路/橋梁/幕墻/展館/室內類效果圖制做，覆蓋拌合站工程|工業|產品|機械|設備|生產流水線|鋼結構領域的3d效果圖制做，結合3D動畫全景圖交互渲染技術助力，提升設計方案創新和互動的的品質！—高維設計

There are various types of renderings for assembly line equipment, and according to different classification standards, they can be classified into the following main types:

Belt conveyor assembly line (also known as belt conveyor rendering):

Applied to the transportation of electronics, hardware, food, medicine, logistics centers, and lightweight items.

Features: Smooth operation, low noise, suitable for long-distance smooth transportation of lightweight materials.

Roller conveyor assembly line rendering (also known as roller conveyor rendering):

Applied to cardboard boxes, turnover boxes, pallets, pallets, etc., suitable for conveying materials with flat bottom surfaces, commonly used in logistics centers.

Features: It can carry a wide range of product types with few restrictions, and can be combined with a blocker to achieve product stacking or offline detection.

Chain plate machine assembly line rendering (also known as plate chain conveyor rendering, shelf conveyor rendering):

Flexible chain plates are used for assembly and transportation of large items with certain weight requirements, while they are used in the food, pharmaceutical, cigarette industry and logistics centers.

Features: Can carry relatively heavy products, operate synchronously with the production line, and achieve product climbing and smooth transportation.

Double speed chain production line rendering (also known as double speed chain conveyor rendering, differential speed chain conveyor rendering):

When applied to large object products that require free assembly and high flexibility requirements.

Features: Adopting double speed chain traction, the tooling board can be freely transported, making it easy to integrate automation equipment and achieve free movement or stopping of workpieces.

Hanging chain assembly line rendering (also known as hanging chain conveyor rendering):

Applied in situations such as material distribution, storage, spraying, drying and curing, and utilizing high space areas.

Features: The product is transported by suspension, often used in conjunction with chain plate conveyor lines in industries such as automotive manufacturing.

Chain conveyor rendering (also known as chain conveyor rendering, pallet conveyor rendering, pallet conveyor rendering):

Suitable for scenarios that require precise control of material position.

Features: Strong load-bearing capacity and stable operation.

Rendering of truss conveyor line (also known as truss conveyor rendering):

Mainly used in automobile assembly plants.

Features: Stable structure, strong load-bearing capacity, suitable for transporting large objects.

Sled assembly line rendering (also known as sled conveyor rendering):

Mainly used in automobile assembly plants.

Features: High conveying efficiency, suitable for continuous and large-scale production.

Track type assembly line rendering (also known as circular trolley conveyor rendering, circular conveyor rendering, reciprocating conveyor rendering):

Applied to large-scale automated warehousing and logistics distribution centers for rapid storage or distribution turnover.

Features: Strong conveying capacity, smooth operation, suitable for automated warehousing and logistics systems.

Source: A professional rendering company that pursues excellence with 18 years of experience in 3D rendering. We undertake the production of 3D renderings for factories, workshops, warehouses, villas, homestays, farms, gas stations, office buildings, clubs, landscapes, gardens, ancient architecture, ancestral halls, engineering, lighting, roads, bridges, curtain walls, exhibition halls, and indoor spaces. We cover the fields of mixing station engineering, industry, products, machinery, equipment, production lines, and steel structures, and combine 3D animation panoramic interactive rendering technology to enhance the quality of design innovation and interaction! - High dimensional design
